Bamo BAMOPHAR 759 Flow Calculator for Open Channels

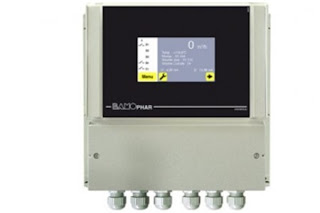

Bamo BAMOPHAR 759 Flow Calculator for Open Channels is easy on the 4.3" color touch screen for flow-rate or height of liquid, as well as for totalization. Through a user friendly menu, settings are easy for thresholds, alarms, sampler monitoring and all parameters. Flow Calculator for Open Channels BAMOPHAR 759 converts the input signal directly into flow-rate, through a calculator and using formulas and calibration tables of our Venturi channels (ISO 4359) and our standard V or U channel weirs.

Bamo BAMOPHAR 759 Features:

  • Color touch screen
  • Display of level, flow-rate, daily volume and totalization
  • Flow-rate tables for Venturi and weir plates
  • 1 Input 4-20mA and 1 input Pt 100 Ohm
  • 2 analogue outputs 0/4-20 mA
  • 4 programmable relay outputs; 2 as alarms, 1 for sampler, 1 for pulse output)
  • OPTIONS:
    • RS 422 /J-BUS + LOGGER
    • Extension terminal for a second measurement input

Extension terminal (panel, wall or DIN rail mounting):

  • Allows a second measurement (Turbidity, pH, Conductivity, etc.)
    Data from this blind unit are displayed on the main device
  • Connected to main unit with a 2x2-wire shielded cable
    (Cable length between both devices: max. 500 m)
  • Extension terminal uses the RS 422 and data logger of main unit

Main Features:

  • End-user interface: Color touch screen 4.3'', resolution 480x272 pixels
  • Display of: measurements, flow rate, temperature, height of liquid, daily volume and totalization, status of relays, settings - Configuration keyword protected
  • Flow-rate: (m³/h) - Resolution 0.1 m³/h - Volumes (m³) - Resolution 1 m³
  • Memorized flow-rate tables In memory for Venturi channels, weird plates in V or U
  • Sampler monitoring: S2 Set up on volume (m³)
  • Pulse output: S4 For external counter - 1 pulse/m³
  • Measurement outputs: 0/4-20 mA (max. 600 Ω)
  • Options: (RS 422 + Logger): Interface RS422 output, J-BUS link - Binary slave mode - 2400 to 9600 bauds; Data Logger Record of cycle average measurement - 150 000 records max. on memory card.

Another Article:



Bamo BAMOPHAR 759 Specification:

End-user interfaceColor touch screen 4.3'', resolution 480x272 pixels
 Display of measurements, flow rate, temperature, height of liquid, daily volume and totalization, status of relays
 Settings - Configuration keyword protected
Measurement ScalesHeight of liquid (mm) - Resolution 1 mm
 Flow-rate (m³/h) - Resolution 0.1 m³/h
 Volume (m³) - Resolution 1 m³
Volumes and totalizationDaily volume - on 8 digits - Reset to zero through the menu
 Totalization - on 8 digits - No reset to zero
Measurement signals inputs4-20 mA proportional to height of liquid
 Temperature Pt 100 Ω sensor (-20 ... 160 °C)
Memorized flow-rate tablesIn memory for Venturi channels, weird plates in V or U
Thresholds S1 and S32 contacts N.O., potential free, dedicated to flow-rate or temperature or to an external sensor.
 Adjustable hysteresis from 0 to 100 % - Adjustable timer from 0 to 9999 s
Sampler monitoring S2Set up on volume (m³)
 1 contact N.O., potential free.
 Adjustable timer (closed contact) from 0 to 9999 s
Pulse output S4For external counter - 1 pulse/m³
 1 contact N.O., potential free
Contact Initial resistance100 mΩ max. (voltage drop 6 V DC 1 A)
Switching power3 A, 277 V AC; 3 A, 30 V DC (nominal)
Switching capacity (min.)100 mA, 5 V DC (variable according to switching frequency, ambient conditions, accuracy)
Measurement output0/4-20 mA (max. 600 Ω) proportional to flow-rate - Programmable scale
 Temperature ( °C )
Main power supply230 V AC - 50/60 Hz (others on request) - Consumption 10 VA
 Panel mounting, 96x144 mm; Front IP65; Rear IP40

Models


 Wall mounting, IP65, with cable glands

OPTION (RS 422 + Logger)


InterfaceRS422 output, J-BUS link - Binary slave mode - 2400 to 9600 bauds
Data LoggerRecord of cycle average measurement - 150 000 records max. on memory card.

Download Data Sheet: Flow Calculator for Open Channels BAMOPHAR 759
