Bamo Measures Sas has been founded in 1978. Its capital is now 400 000 Euros. Since the beginning, the company has undergone a rapid development centering on industrial pH-meters and conductivity meters. Bamo is now well-known as a leader in the French market.
 |
| Bamo BMV Metallic Flow Controllers with Sided Indicator |
Since 1990, new developments in the Level Measure have given a new spring in the export. To its own product range, the company holds numerous agencies of foreign companies in Europe and all over the world. So we are offering a complete line with always the best possible service.
Bamo is a company that comes from France. This company selling some product. The product of Bamo such as pH and ORP; Chlorine, disinfection; Data processors; Conductivity; Water hardness; Turbidity; Oxygen; Level; Temperature; Flow; Pressure; Plastic valves; Metal valves.

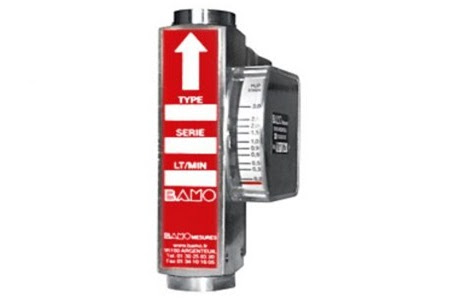

Metallic Flow Controllers with Sided Indicator BMV
Bamo BMV series: to control and indicate the flow-rate in a vertical pipe with ascending flow; The liquid must be free of particles. The solid-state body accepts high operating pressures. The liquid drives a magnetic diver inside a perforated tube (conical slots) which actuates an external analog display on the side of the device. The magnetic coupling ensures that indication can not be lost whatever the speed of rising of the diver. At the same time, the magnetic diver actuates an N.O. contact (open without flow).
Features:
- Vertical mounting
- Flow indicator with 1 adjustable contact
- Material: Brass or AISI
- Pressure limit up to 300 bar
- Flow ranges within 0.1 ... 50 l/min
Application:
Control and indication of flow-rate in pipings (cooling, lubricating, etc.) or in any compatible skids.
Specification:
| Temperature limits | -20 ... +100 °C |
| Flow ranges | l/min of water at 20 °C |
| Accuracy | ±5%F.S. |
| Switch | N.O. without flow |
| Protection | IP 65 |
| Connection | DIN 43650 plug-in socket, cable gland PE 9 |
| Indicator | Makrolon® and nickel-plated brass |
Brass version | 200 bar |
| Pressure limit | |
| Pressure drop | 0.02 ... 0.2 bar |
| Body | Nickel-plated brass |
| Fittings | Nickel-plated brass |
| Diver | Nickel-plated brass |
| Seals | NBR |
Stainless steel version | |
| Pressure limit | 300 bar |
| Pressure drop | 0.02 ... 0.2 bar |
| Body | AISI 316 Ti (1.4571) |
| Fittings | AISI 316 Ti (1.4571) |
| Diver | AISI 316 Ti (1.4571) |
| Seals | FPM |
Ref: bamo.eu
Contact us : sales@wmablog.com or visit to our E-Commerce
Download Data Sheet: Metallic Flow Controllers with Sided Indicator BMV
