Capacitive level sensors Dinel DLS–27

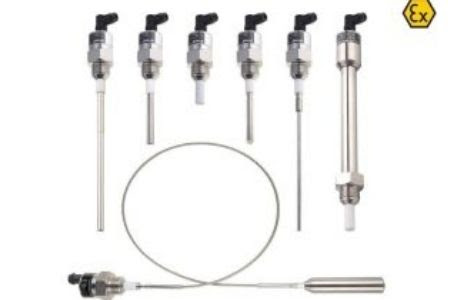

Capacitive level sensors DLS are designed for limit sensing of the level of liquid and bulk solids in tanks, sumps, tubes or, hoppers, silos, etc. The sensors are manufactured in several modifications of sensing electrodes (rod and rope). The electrodes can be given an insulating coating, a useful feature in case of adhesive, aggressive, or conductive media sensing. Rod electrodes are also available in a version with a reference tube for measuring fluids in tanks made from a non-conductive material.
Capacitive level sensors Dinel DLS–27

Sensors are manufactured in the following configurations: N – for non-explosive areas, Xd – For use in flammable dust atmospheres; Xi – Explosion-proof – intrinsically safe for hazardous (explosive) areas and XiM – Explosion-proof – intrinsically safe for use in mines with methane or flammable dust presence danger (see technical specifications). There are high-temperature performance NT, XiT, XiMT available, and various types of process connections (metric and pipe thread, jointless connection Tri-clamp).


  • For limit level sensing of liquid, and bulk-solid and powder materials
  • Universal using (bulk solids, liquids, aggressive materials, petroleum products, etc.)
  • Direct mounting into various containers, silos, vessels, tanks, filling inlets, reservoirs, etc.
  • Sensitivity and hysteresis fluently adjustable
  • Output types NPN, PNP, NAMUR
  • Direct mounting into various containers, vessels, silos, tanks, filling inlets, reservoirs, etc.
  • Outputs NPN, PNP, NAMUR (for explosive areas)
  • Sensitivity and hysteresis fluently adjustable
  • Supply voltage 7 ... 36 V DC (NAMUR 8 ... 12 V DC)
  • The material of housing and electrode from stainless steel
  • Process coupling - thread M27x2; M30x1.5; G3/4“ or Triclamp
  • LED state indication
  • Xi, XiT versions for usage in explosive areas, or Xd version for usage inflammable dust areas, or XiM, XiMT versions for mining environments with a risk of hazard by methane or coal dus


Supply voltageperformance DLS-27N7 ... 36 V DC
performance DLS-27Xd7 ... 33 V DC
Current supply (state OFF / ON)3 / 10 mA
Max. switching current (NPN, PNP)performance DLS-27N200 mA
performance DLS-27Xd200 mA
Residual voltage – ON statemax. 1,5 V
Delay of output signal due to electrode activation 0,2 s
Input resistance / Electric strength 1 MΩ / 1 kV AC
Coupling capacity / Electric strength47 nF / 250 V AC *
Protection class IP 67
Cable (version with cable outlets) PVC 3 x 0,5 mm2 or 2 x 0,75 mm2
Weight (excl. electrode, cable 2 m) DLS – 27_cca 0,4 kg
DLS – 27_Tcca 0,7 kg
