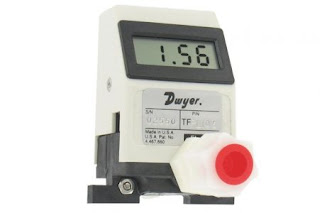

Dwyer TFP-LI Series Liquid Turbine Flow Meter

Wiratama Mitra Abadi 01 18.04 flow measurement,

Dwyer TFP-LI Series Liquid Turbine Flow Meter are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.

Turbine sensors with electrical transmission output for remote indication of liquid flow rate. Dwyer turbine flow transmitters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. A power adapter or mating cable assembly is required for operation.

Dwyer TFP-LI Series Features

A 3-1/2 digit LCD informs the user of the actual flow rate
These meters utilize a turbine wheel and electro-optical detection
flow rates into a linear 0 to 5 VDC output signal for recording and data logging

Specification

Service	Clean liquids compatible with wetted materials.
Wetted Materials	PPS, acetal, sapphire, glass, epoxy, and fluoroelastomer.
Accuracy	±1% of full scale.
Linearity	±1% of full scale.
Repeatability	±0.2% of full scale.
Temperature Limits	41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of full scale per °C.
Pressure Limits	100 psig (6.8 bar).
Process Connection	Compression fitting
Power Requirements	11.5 to 15 VDC.
Power Consumption	35 mA @ 12 VDC.
Output Signal	0 to 5 VDC: Minimum 2.5 kΩ load.
