Isoil ISOMAG MS 501 Electromagnetic Microflow Sensor

Isoil ISOMAG MS 501 for flow meters is the smallest instrument in the series, with a wide range of applicability thanks to the variety of its attachments.

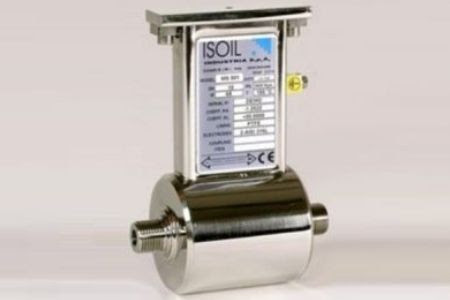

Isoil ISOMAG MS 501 Electromagnetic Microflow Sensor

The sensors for electromagnetic flowmeters of the ISOMAG line are used to measure conductive liquids in various applications, thanks to a wide availability of nominal diameters, materials for coatings and electrodes, process connections, and certifications.

Isoil ISOMAG MS 501 Overall Features

• Nominal diameter: DN 3 ÷ 20
• Minimum conductivity: 5 µS/cm
• Humidity Range: 0÷100% (IP 67)
• Accuracy: See relevant converter datasheet
• CE Certification: Yes



Standard Features

• Body material: AISI 304
• Nominal pressure: 1600 kPa
• Process connection:
  • Threaded UNI 338
  • Threaded NTP
  • Flanged UNI 2278
  • Flanged ANSI 150
  • Sanitary DIN 11851
  • Clamp ISO 2852
  • Clamp BS 4825
  • SMS
• Version - protection rating: Compact IP67
• Connections material : AISI 316
• Lining material: PTFE
• Gasket material: FPM
• Liquid temperature:
  • -20°C ÷ 100°C comp. (130°C only with ML4F-1)
  • -20°C ÷ 130°C separate.
• Vacuum resistance: 20 Kpa absolute at 100°C
• Electrodes material
  • AISI 316L
  • Hastelloy C
  • Platinum - rhodium
  • Titanium
  • Tantalum



Optional Features

• Body material: stainless steel 316
• Gasket material: EPDM
• Nominal pressure: 4000kPa
• Process connection: Others on request
• Connections material:
  • AISI 304 with lining in PTFE
  • Other on request
• Electrodes material: Others on reques
• Version - protection rating:
  • Separeate (max 20m) _ IP 68
  • Separate (max 500m) with pre-amp 67 (IP 68 optional)



Download Datasheet: Isoil Electromagnetic microflow sensor MS 501 ISOMAG
